Features
About Healthtec
Healthtec tables are proudly Australian-made and built to last. With up to 50% fewer moving parts than comparable tables on the market, they are designed for durability, reliability, and ease of maintenance.
Each table is custom made to order, with an estimated turnaround time of 4–6 weeks from the date of purchase.
You can view the available colour options here:
AUSTEX COLOURS – EZYCLEAN UPHOLSTERY VINYL FOR HEALTHCARE ENVIRONMENTS
Go to the Austex website for details and specifications https://austexfabrics.com.au/vinyl/studio-encore/
SILEX COLOURS – SILICONE UPGRADE
Go to the Innova website for details and specifications https://www.innova.com.au/products/silex

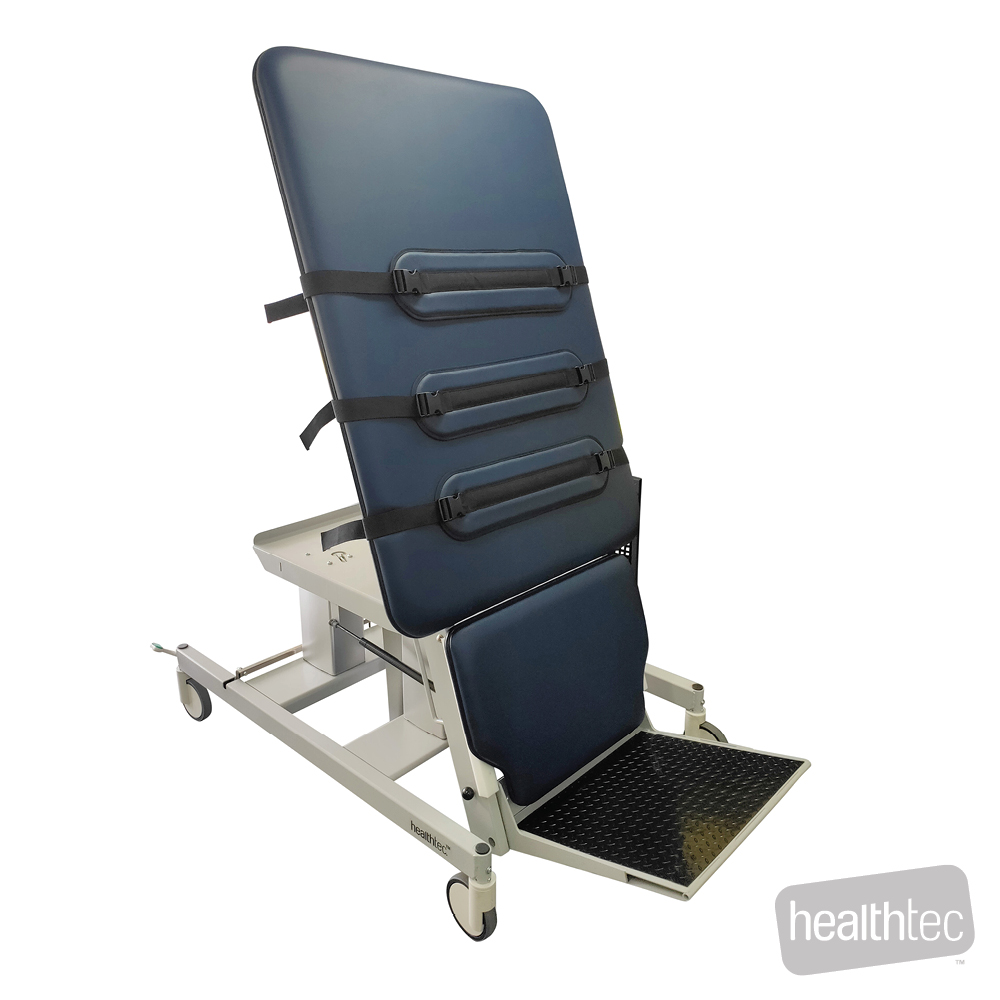

Product Description
The foot plate meets flush with the floor minimizing tripping hazards when the patient walks on and walks off.
The smooth quiet tilt function from horizontal to +75° allows for infinite adjustment in between and is supplied complete with three extra wide patient safety straps, multi-function hand switch and central locking castors.
This hi-capacity Tilt Table has the added safety feature of quick (CPR) release allowing for manual let down in times of a power outage or emergency situations.
Also available with electrically operated foot plate and optional digital weighing system built into frame.
Features
- Electric Height and Tilt Adjustment with Hand Switch
- Single Foldaway Foot Plate as Standard
- +/– 10º Plantar/Dorsi Flexion Foot Plate
- Foot Plates can Foldaway Converting the Tilt Table into an Examination Table When Required

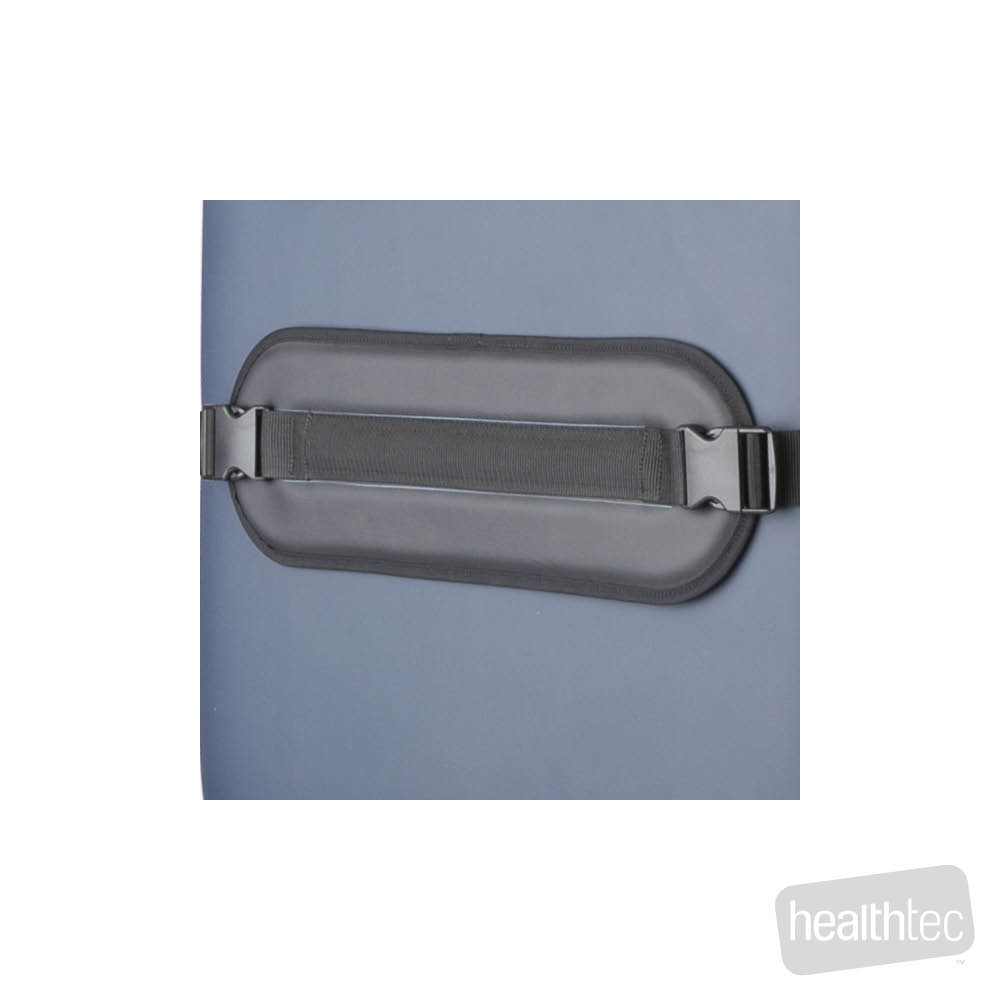

- 3 x Patient Safety Straps Supplied as Standard
- Independently Operated Tilt and Height Adjustment
- Central Locking Castors
- 150mm Clearance to Accomodate Patient Lifter
- Optional Electrically Operated Foot Plate Available

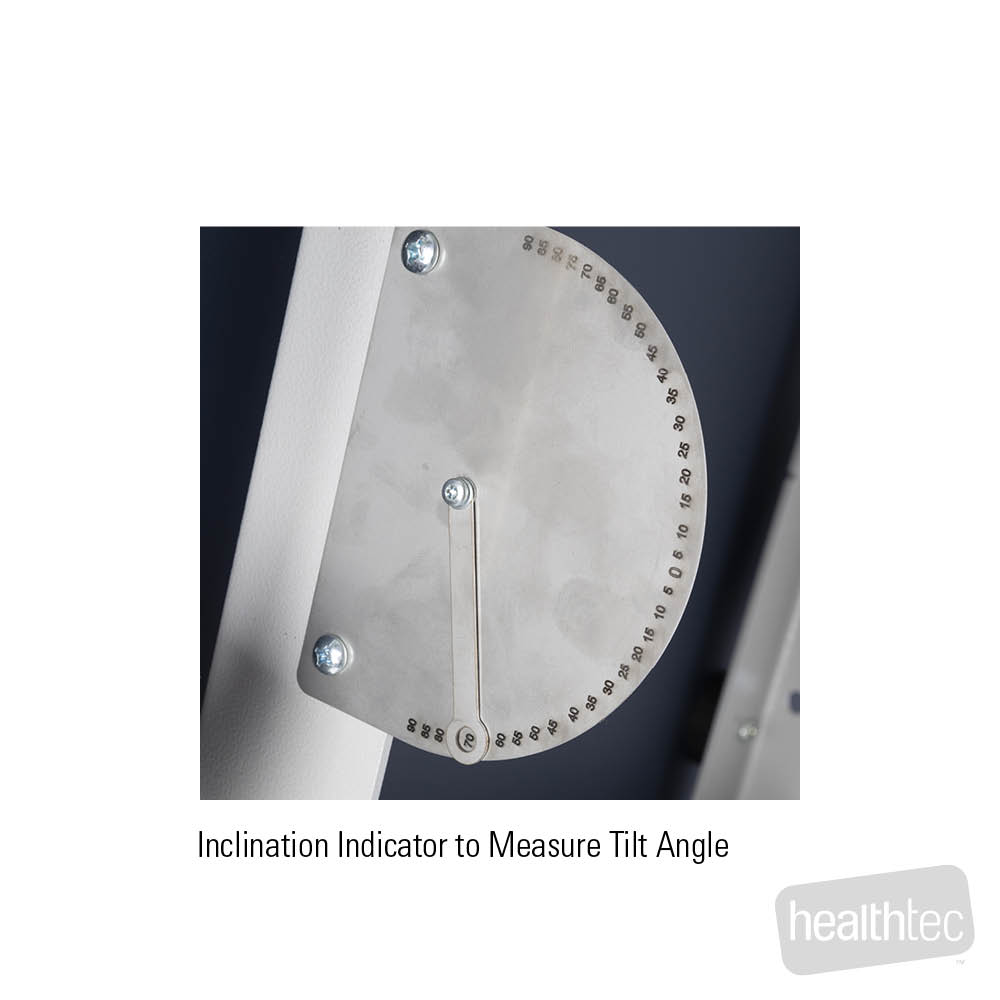

- Infinite Tilt Adjustment to +75º
- Castor Legs at Tilt End are Wide Enough to Fit a Walking Frame
- 5 Year Warranty on Frame and Electrics
- Australian Designed and Manufactured

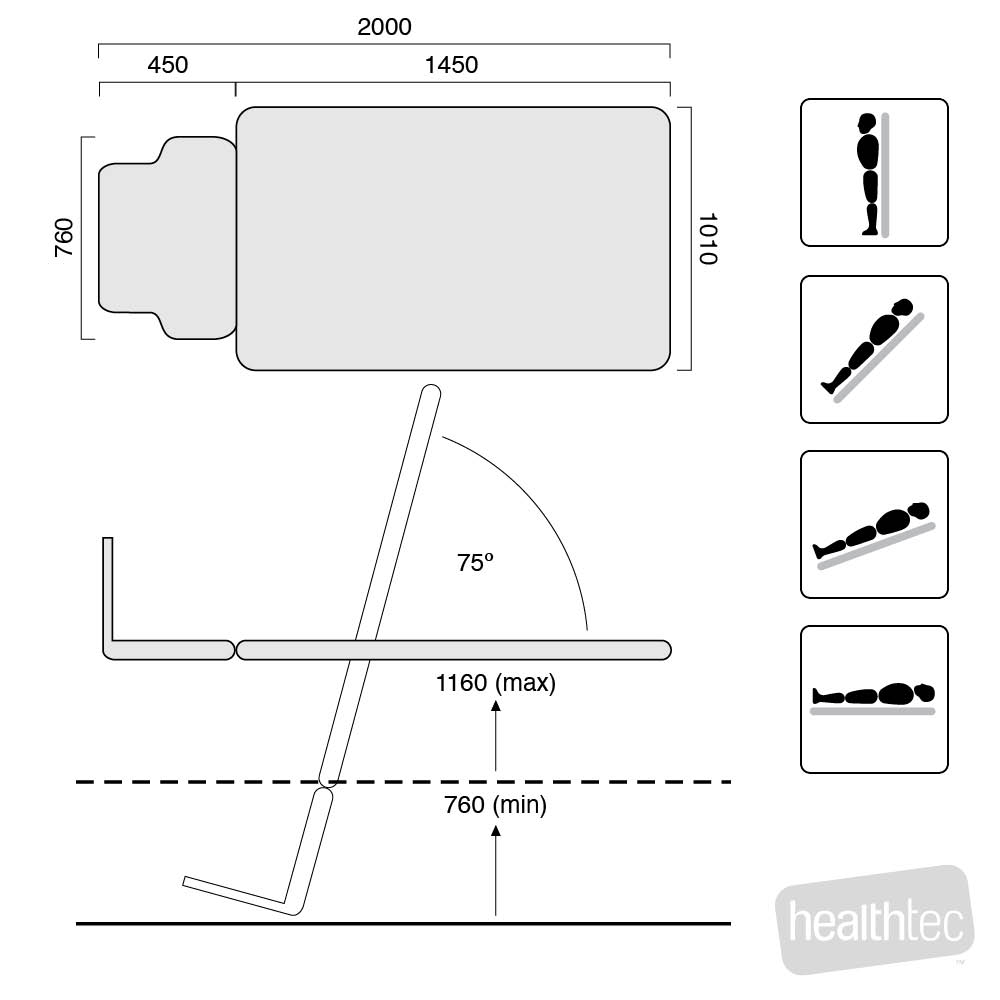

| PRODUCT INFORMATION | |
| Maximum Working Load | 450kg (Stationary) |
| Maximum Lifting Capacity | 350kg (Moving) |
| Minimum Working Height | 760mm |
| Maximum Working Height | 1160mm |
| Table Width | 1010mm |
| Table Length | 2000mm |
| Cushioning | 50mm Foam |
| Controller | Hand Switch |
| Base/Castor | Column Base w/lockable castors 360º rotation |
| Tilt Angle | Electric Adjustment +75º |
