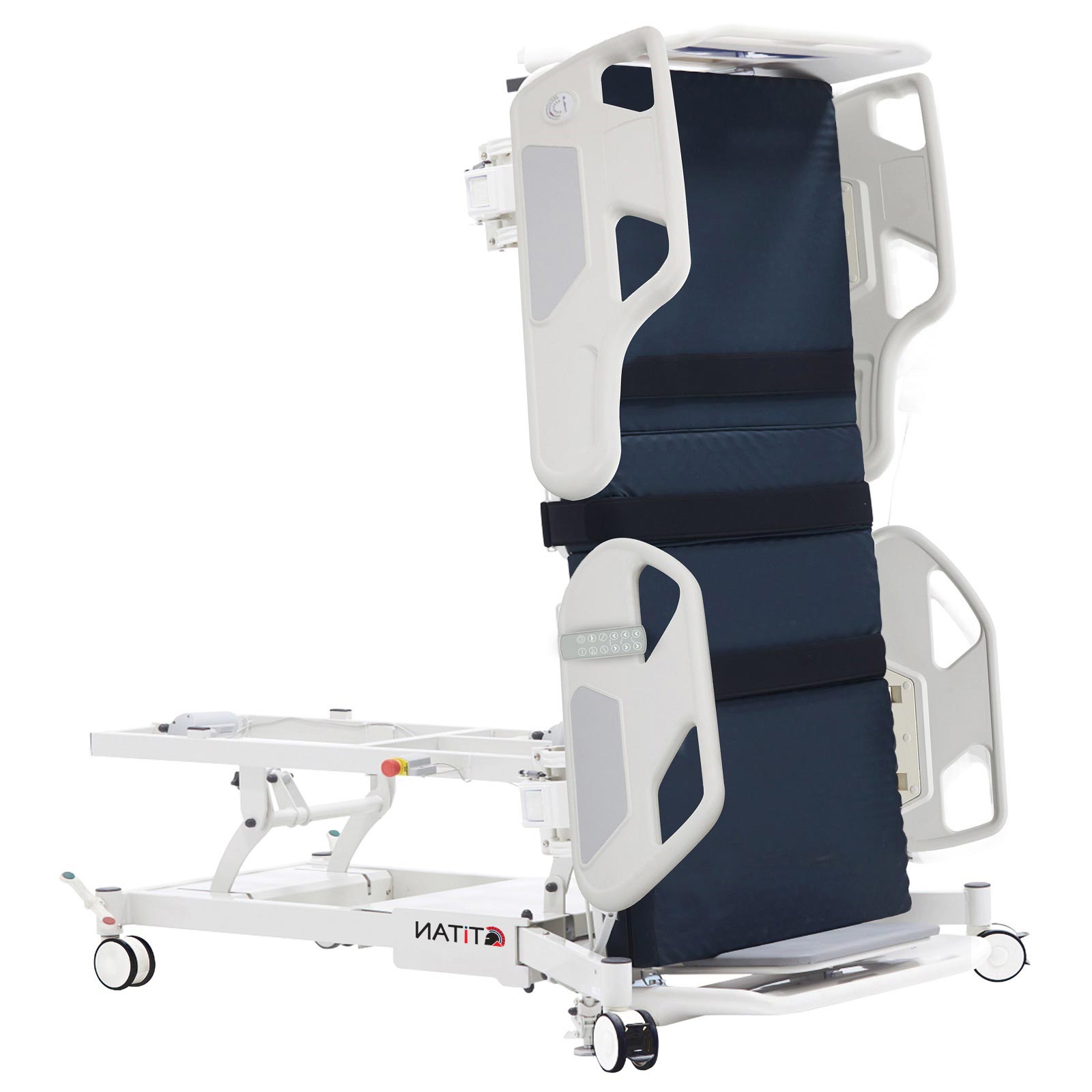

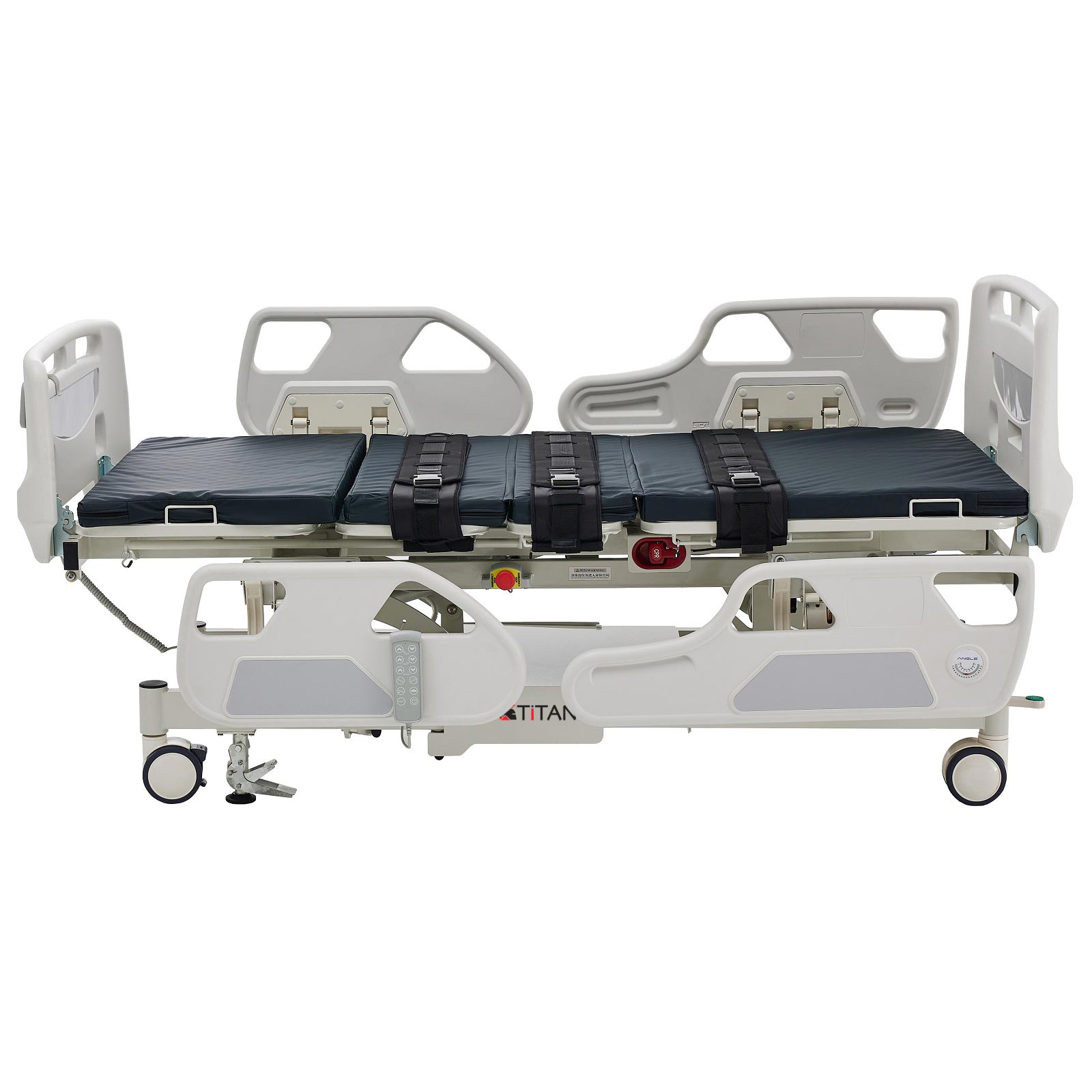

A strong, reliable and high quality five function tilting ICU hospital bed. Well featured including removeable boards, removeable ABS side rails, drainage bag holders, iv pole & 125mm central lock castors. An ideal product for high needs patients requiring long term treatment with the tilting function allowing treatment of the nervous system with weakness, pain, muscle spasm, and for auxiliary rehabilitation purposes such as  hemiplegia, paraplegia and traumatic brain injury and other severe patients to resume standing training.

Features:

Electric operation by handset with integral function lockout
Electrically operated backrest, height & knee break angle
Backrest manual CPR release on both sides
Tilt inclinometer
Emergency stop button
Removeable head & foot board
Patient handset & nurse control panel
Battery backup
Four ABS safety side rails
Four drainage bag holders on both sides
Durable patient belts
Heavy duty IV pole
Auto contour simultaneous adjustment of backrest & knee break
125mm heavy duty central locking castors
Foam mattress

Specification:

Overall length: 215cm
Overall width: 110cm
Height range: 52-76cm
Hoist clearance: 14cm
Mattress platform length: 195cm
Mattress platform width: 90cm
Backrest angle: 0-75 degrees
Knee break angle: 0-35 degrees
Leg angle: 0-20 degrees
Trendelenburg & reverse trendelenburg: 0-16 degrees & 0-13 degrees
Tilting angle: 0-85 degrees
SWL: 225KG
Warranty: 3 Years
Certification: CE, FDA, ISO13485-2016
