Features

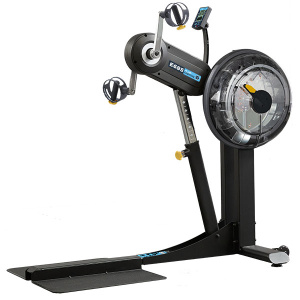

FULLY ADJUSTABLE STANDING UPPER BODY ERGOMETER
The E685 Arm Cycle is a fully adjustable Standing Upper Body Ergometer built for commercial application and designed to withstand the loads of high intensity powerful workouts or provide silky smooth resistance suitable for warm ups, cool downs and rehabilitation.
The E685 resistance is set via our patented 10x Adjustable Fluid Resistance Twin Tank system and the RPM is driven by you. The Arm Cycle is capable of handling the ballistic speeds of a HIIT workout and yet will remain smooth and consistent at very low RPM. This wide variation in load and speed capabilities allows you to train effectively to any workout program.

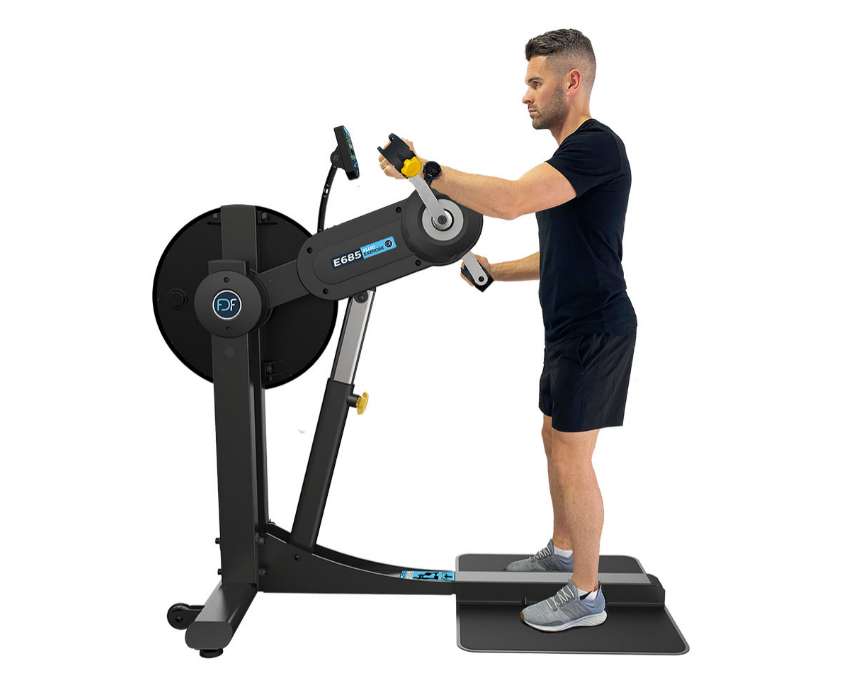

The ground based E685 Arm Cycle movement involves long kinetic chains engaging many muscles from the ground up. Your core is activated to support your entire shoulder girdle when engaged in the arm cycle motion. The E685 provides load in either direction. Changing direction alters the emphasis on the muscles engaged, adding even more variety to your training.
The E685 is a perfect inclusion for any type of fitness facility. It can add variety to all types of group training, is a perfect warm up tool with a focus on the core and upper body and only takes up a little over 2sqm (23sqft).
PLEASE NOTE THAT AS THIS ITEM IS BULKY EXTRA HEAVY SHIPPING APPLIES
PRODUCT SPECIFICATIONS
| Product Model No | E685 BLACK |
| Fluid Resistance | Vertical FDF Twin Tank – 10 levels |
| Monitor | FDF Bluetooth / Heart Rate Compatible |
| Product Net Weight | 78.12kg (172.22lb) |
| Product Gross Weight | 96.78kg (213.36lb) |
| Dimensions | L 1,326mm (52.2”) x W 736mm (28.9”) x H 1,242mm (48.8”) |
| Min Active Area Required | L 1,940mm (72.4”) x W 1,350mm (53.1”) |
| Max User Weight | 180kg (396.8lb) |
| Arm Crank Height | Height adjustable from 700mm to 1,300mm |
| Arm Crank Length | 185mm |
| Commercial Warranty | Frame 10 years – Fluid Tank 5 years |
| Mechanical and all other non wearing components – 2 years |
