Gain Complete Freedom with Advanced Wireless Electrotherapy

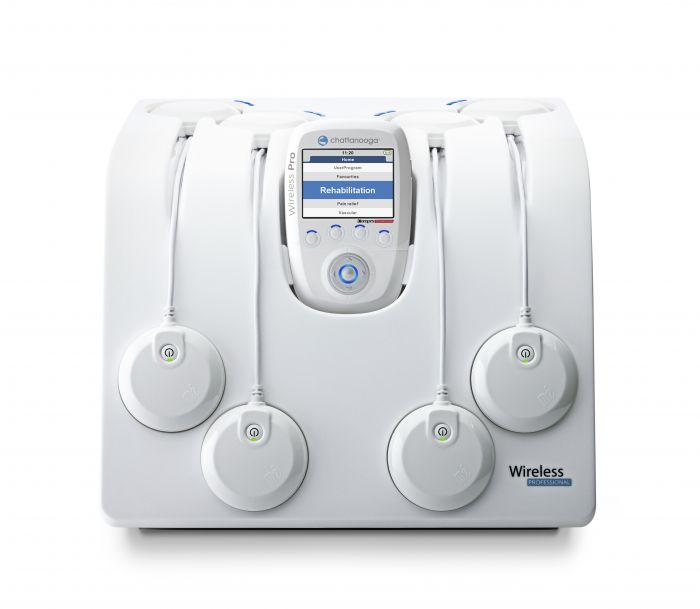

Take your clinic or rehabilitation practice to the next level with the cutting-edge Chattanooga Wireless PRO 4-Ch. This innovative device delivers reliable electrotherapy for a wide range of indications and offers complete wireless freedom. The Chattanooga Wireless PRO 4-Ch includes four independent, customisable channels so you can manage either standard TENS/NMES or complex neurology and ACL protocols. The Trigger function lets you control stimulation manually, allowing for truly interactive or voluntary muscle contraction sessions. The system includes two intuitive remotes and a Smart Docking Station, making multi-patient or multi-session workflows seamless and efficient. Designed for flexibility, this stimulator provides detailed pulse control and robust safety through constant rectangular current and precise manual adjustments. Choose a powerful solution that empowers physiotherapists to deliver tailored, responsive treatments.

Features and Benefits

• Wireless function enables complete freedom of movement and untethered treatment
• Four independent, individually adjustable channels optimise treatment versatility
• Trigger function allows manual stimulation control for voluntary contractions
• Includes 2 remotes for intuitive control and streamlined workflow
• Smart Docking Station manages several sessions at once (Multi-Sessions)
• Pulse shape uses constant rectangular current with pulse compensation for safety
• Maximum pulse intensity reaches 120 mA for a broad therapeutic range
• Manual stimulation intensity adjustment from 0 to 999 (in steps of 0.25 mA)
• Pulse width ranges from 30 to 400 μs
• Delivers maximum electrical charge per pulse at 96 μC (2 x 48 μC, compensated)
• Standard pulse ramp-up time is 3 μs (20%-80% of max current)
• Pulse frequency adjustable from 1 to 150 Hz, with 100 Hz option
• Includes a three-year warranty for peace of mind

Indications for Use

• Electrotherapy for pain management (TENS/NMES)
• Treatment of neurological conditions
• Post-surgical ACL rehabilitation

As an NMES device, indications are for the following conditions:

• Retarding or preventing disuse atrophy
• Maintaining or increasing range of motion
• Re-educating muscles
• Relaxation of muscle spasms
• Increasing local blood circulation

As a TENS device, indications are for the following conditions:

• Symptomatic relief and management of chronic, intractable pain
• Adjunctive treatment for post-surgical and post-trauma acute pain
• Relief of pain associated with arthritis.

Size Guide

• Remote control dimensions 105 x 66 x 19 mm, weight 116 g (including battery)
• Module dimensions 55 x 16 mm, weight 62 g (including battery)
• Docking station dimensions 265 x 240 x 200 mm, weight 2.4 kg

Programmes

• 4 standard + 4 Full programmes categories:

1. Rehabilitation I&II
2. Pain Relief I&II
3. Vascular Neurologic Rehabilitation Conditioning I&II
4. Full programme configuration – 4CH – Multi-Sessions.

• WIRELESS TECHNOLOGY

Remove constraints for you and your patient. Gives your patient a total freedom of movement facilitating patient manipulations and allowing you to combine active exercise with electro stimulation for a better result.

MULTI-SESSIONS

• The device is delivered with 4 modules, 2 remotes and a smart docking station allowing the user to synchronize modules and remotes to manage independently several sessions at the same time. Additional remotes/modules are optional.

TRIGGER FUNCTION

• Start the stimulation on demand by pressing a trigger button when needed (Hemiplegic foot, spasticity…)

MUSCLE INTELLIGENCE TECHNOLOGY

• 4 functions Mi-Scan, Mi-Tens, Mi-Range and Mi-Action are available on each module (4 modules delivered).

+ TENS OPTION

• Select one programme and add TENS on other channels.This allows treatment of two different body parts, two patients simultaneously or combines TENS and NMES when this kind of stimulation is required. SKIP Manage the session time and move directly to the next phase (recovery) when needed.

MOTOR POINT PEN

• This very useful tool in combination with the dedicated programme helps to ensure the optimal electrode placement.

AUTONOMY AND SPEED RECHARGE

• Daily use autonomy and with the charger included in the kit, a full cycle of recharging will take a maximum of 1.5 hours.

KNOWLEDGE INSIDE

• Electrode placements, programme parameters and programme explanation directly available in the remote control.
